• Differential Probe

  • (40KVp-p / 75MHz)

    DP-40K (40KVp-p / 75MHz) Differential Probe

    Features : MAX. Input Voltage: ±20KV DC or 40KV p-p or AC 14KV rms Bandwidth: 75MHz Input Impedance 109MΩ// 1PF x500, x5000 Attenuator To Ground MAX. Voltage: 10KV CAT III Output Impedance 50Ω

    More

  • ( 50MHz/7KVp-p )

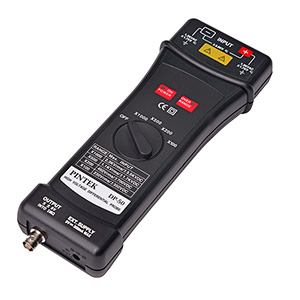

    DP-50 ( 50MHz/7KVp-p ) Differential Probe

    This is the first detachable design (patent for 15 years) 4 range attenuation selection, easy for operation. For big power using. Max. Measuring is 7KVp-p. It is capable for any brand of digital and analog oscilloscopes. 16MΩ high input impedance. This is a valuable product. Please visit PINTEK website, www.pintek.com.tw for further details.

    More

  • ( 50KVp-p / 60MHz )

    DP-50K ( 50KVp-p / 60MHz ) Differential Probe

    Fuatures :MAX. Input Voltage: ±25KV DC or 50KV p-p or AC 17KVrmsBandwidth: 60MHz(X500), 20MHz(X5000) Input Impedance: 280MΩ// 1.5PFx500, x5000 AttenuatorTo Ground MAX. Voltage: 8.8KV CAT IIIOutput Impedance: 50Ω

    More

  • ( 60KVp-p / 60MHz)

    DP-60K ( 60KVp-p / 60MHz) Differential Probe

    Fuatures :MAX. Input Voltage: ±30KV DC or 60KV p-p or AC 21KVrmsBandwidth: 60MHz(X500), 20MHz(X5000)Input Impedance: 320MΩ// 1.5PFx500, x5000 AttenuatorTo Ground MAX. Voltage: 10.6KV CAT IIIOutput Impedance: 50Ω

    More

  • ( 60 MHz / 70 Vp-p)

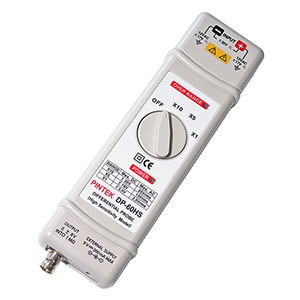

    DP-60HS ( 60 MHz / 70 Vp-p) Differential Probe

    Features : High Sensitivity Model: x 1, x 5, x 10 Attenuation 1 MΩ // 10PF Input Impedance High Frequency Operation: x 1(30 MHZ), x 5(60 MHZ), x 10(60 MHz) Especially For Low Voltage: x 1(7 Vp-p), x 5(35 Vp-p), x 10(70 Vp-p)

    More

  • ( 100MHz/7KVp-p )

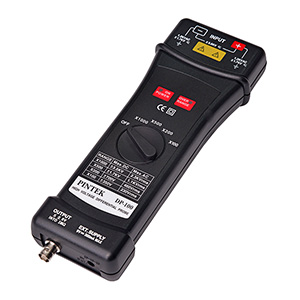

    DP-100 ( 100MHz/7KVp-p ) Differential Probe

    This is the first detachable design (patent for 15 years) High frequency, big power using. Max. Measuring is 7000Vp-p. It is capable for any brand of digital and analog oscilloscopes. Additional AC Adaptor. 16MΩ high input impedance. This is a valuable product. Please visit PINTEK website, www.pintek.com.tw for further details.

    More

  • ( x1, x10, x100/50MHz )

    DP-800HS ( x1, x10, x100/50MHz ) Differential Probe

    Features : 1:1 High Sensitivity 100 Gain Design x1, x10, x100 Attenuator Bandwidth: DC-50MHz Input Impedance 3MΩ // 2.5PF Max. 800Vp-p Input or ±400V DC or AC 280V RMS Output Impedance 50Ω

    More

  • (+/- 1300V / 35MHz)

    DP-5201A (+/- 1300V / 35MHz) Differential Probe

    Features :MAX. Input Voltage: +/-1300V (DC + AC peak)Bandwidth: 35MHz all rangesAttenuation: x50, x500Input Impedance:5MΩ // 2PF (each to Ground)10MΩ // 1PF (dual terminals)Accuracy: +/-2% all ranges5MHz limited Bandwidth selectionIt is able to connect to oscilloscope USB to get 5V DC power.The probe itself also has power adaptor for standard accessory

    More

  • (+/- 1300V / 70MHz)

    DP-5203A (+/- 1300V / 70MHz) Differential Probe

    Features :MAX. Input Voltage: +/-1300V (DC + AC peak)Bandwidth: 70MHz all rangesAttenuation: x50, x500Input Impedance:5MΩ // 2PF (each to Ground)10MΩ // 1PF (dual terminals)Accuracy: +/-2% all ranges5MHz limited Bandwidth selectionIt is able to connect to oscilloscope USB to get 5V DC power.The probe itself also has power adaptor for standard accessory

    More

  • (+/- 1300V / 100MHz)

    DP-5205A (+/- 1300V / 100MHz) Differential Probe

    Features :MAX. Input Voltage: +/-1300V (DC + AC peak)Bandwidth: 100MHz x 500, 90MHz x 50Attenuation: x50, x500Input Impedance: 5MΩ // 2PF (each to Ground)10MΩ // 1PF (dual terminals)Accuracy: +/-2% all ranges5MHz limited Bandwidth selectionIt is able to connect to oscilloscope USB to get 5V DC power.The probe itself also has power adaptor for standard accessory

    More

Total of 22 results
