Test Leader / Other
-
BP-250 ( BNC Plug to BNC Plug / 100cm ) Test Leader / Other
Wire Lenght: 1.0M, male to mal MAX. Input: 3A / 500V RMS Wire Property: 5.0 mm, RG 58 A / u Cu Wire: 50Ω Coaxial BNC Cable Insulated: Double Insulation Safety Certifications: Mee IEC-1010-1;UL-3111-1 -
BP-251 ( BNC Plug to Alligator Plug / 125cm ) Test Leader / Other
BNC Plng to Alligator clip Impedance 50ΩL = 125cm ±10% RG-58u Coaxial cableMAX Voltage: 300V (DC+AC peak) MAX. Current: 3A -

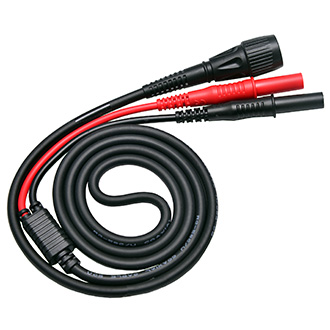

BP-252 (Especially for Differential Probe connects to DMM accessory / 115 cm) Test Leader / Other
Features :50ohm impedance output cableRG-58U COAXIAL CABLEMax. working voltage: 300V (DC + AC peak)Max. working current: 3ATotal length: 115 cm +/- 10%One terminal is male BNC, the other side is banana plug -
BP-253N ( Banana Plug to Alligator Clip / 100cm ) Test Leader / Other
Bana Plug to Aligator Clip 6KV DC, 10A, 150℃, UL3239, 18AWG Silicone Wire, 100cm ±10% -
BP-356N ( Banana Plug to Banana Plug / 6KV / 60cm ) Test Leader / Other
Banana plug to Banana plug UL3239, 6KV DC Max. Current : 10A Length : 60 cm Silicone Wire -
BP-366A ( Banana Plug to Banana Plug / 20KV / 60cm ) Test Leader / Other
BP-366 is special design for differential probe input cable (20kV / 60cm)All new design tooling, safety, convenient and metal is not exposedDual terminals are using Beryllium copper, which is able to maintain the elasticity to avoid disconnection and more durability 20kV DC, 16AWG, 150℃, cold resistant silicon material, most safetyMax. current: 10ALength: 60 cmBoth terminals are male banana plugs -
ETL-2100 ( Extension Cable / 20kV DC ) Test Leader / Other
High voltage extension cable Banana plug at both sides, one male, one female Total length: 100 cm, one set for 2 cables, one is black, one is red Safe, easy to connect and long extension cable Maximum voltage ≦20kV DC Maximum volage ≦10A Maximum temperature ≦150℃ Cable diameter 4Φ, 16AWG Silicone, soft, cold resistant material -
ETL-3100 ( Extension Cable / 30kV DC ) Test Leader / Other
High voltage extension cable Banana plug at both sides, one male, one female Total length: 100 cm, one set for 2 cables, one is black, one is red Safe, easy to connect and long extension cable Maximum voltage ≦ 30kV DC Maximum volage ≦ 5A Maximum temperature ≦ 150℃ Cable diameter 4Φ, 20AWG Dual silicone, soft, cold resistant material -
BP-256A ( lC Clips／1KV ) Test Leader / Other
All new design, more durable, convenient to use Features: testing point and cable are detachable, easy to repair and to pack Small metal at front tip to prevent short and damages when IC clips tip inserted to DUT doing measurements IC Clips length: 122.5 x 38 mm (black and red each)\ Maximum rating input voltage: 5A/1kV RMS Dual insulation Meet: IEC-1010-1, UL 3111-1 -
BP-266N ( IC Clip / 6-5KV ) Test Leader / Other
It is 5kV test probe, safe, and easy to measure over 1000V voltage. Probe length: 18cm (red and black each) Max. rating input voltage: 3A/5kV DC + AC peak Isolation: meet CE compliance, CAT III Safety: IEC-1010-1, UL-3111-1
Total of 22 results
